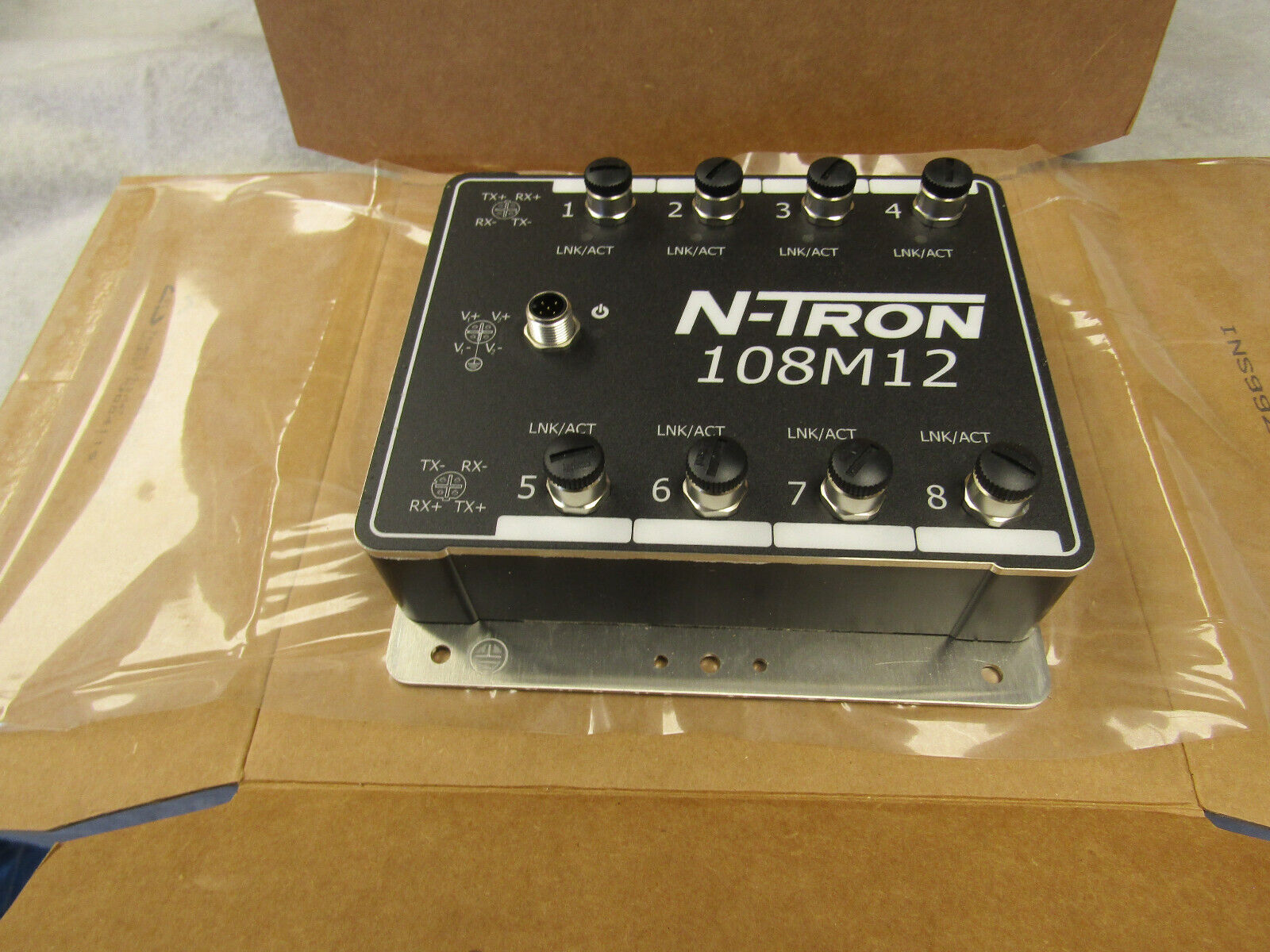

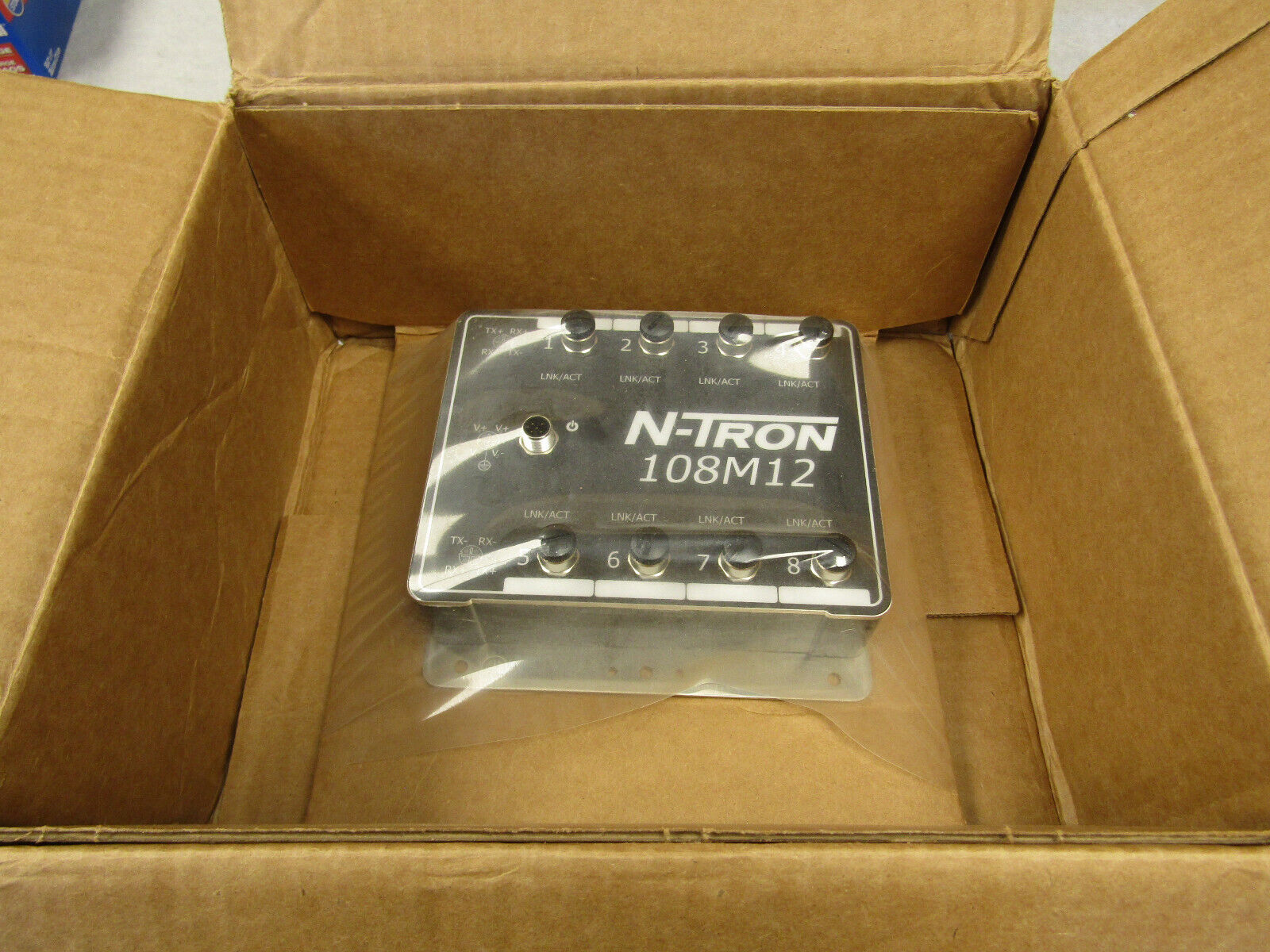

Manufacturer: Red Lion N-Tron
Part No: 108M12
Condition: New surplus item that comes in manufacturer's packaging. Cardboard box has some marks from previous shipping.
Part No: 108M12
Condition: New surplus item that comes in manufacturer's packaging. Cardboard box has some marks from previous shipping.
Description:
- Unmanaged Operation
- IP67 Rated Hardened Metal Enclosure
- Bulkhead Mountable (Optional DIN-Rail mounting)
- Dustproof
- Protection Against low/high Pressure Water Jets
- Temporary Immersion in Water
- Eight 10/100BaseTX Ports
- M12 D-Coded Female 4 Pin Connectors
- Extended Environmental Specifications
- -40° to 70°C Operating Temperature
- >2M Hours MTBF
- Store-and-forward Technology
- Supports Full/Half Duplex Operation
- Up to 1.6 Gb/s Maximum Throughput
- MDIX Auto Sensing Cable
- Auto Sensing Speed and Flow Control
- Full Wire Speed Communications
- Redundant Power Inputs (10-30 VDC)
- Order Model #108M12 for 10-30 VDC Operation
- Order Model #108M12-HV for 10-60 VDC Operation
- ESD Protection Diodes on All Ports
- Surge Protection Diodes on Power Inputs
- LED Link/Activity Status Indication
